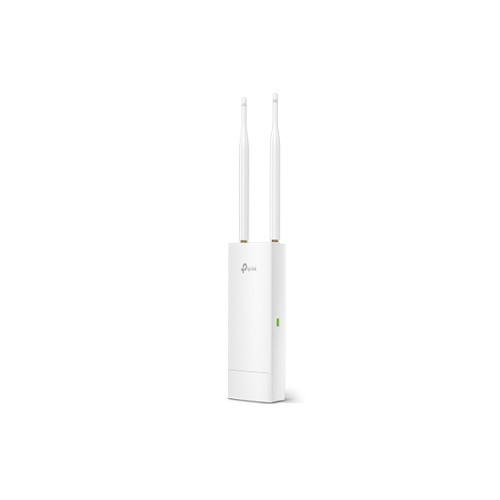

TP-LINK EAP110-Outdoor 300Mbps Wireless N Ceiling Mount Access Point

Deskripsi

300Mbps Wireless N Outdoor Access Point
EAP110-Outdoor

Dirancang untuk penggunaan Wi-Fi luar ruang
Memiliki kecepatan Wi-Fi hingga 300Mbps dengan teknologi 2x2 MIMO
Memiliki daya transmisi yang tinggi serta high-gain antena untuk cakupan area yang lebih luas
Tahan lama. serta tahan terhadap kondisi cuaca yang buruk
Dilengkapi dengan passive PoE(Power over Ethernet) dan desain yang simple untuk memudahkan pemasangan
Dilengkapi dengan Auranet Controller Software untuk pengaturan administrasi yang lebih mudah, hingga ratusan EAP
Captive portal memberikan metode yang mudah untuk otentikasi tamu
Medukung pengelolaan vlan untuk penyempuranaan pengelolaan jaringan

Tinjauan
Nikmati Wi-Fi di Luar Ruang

EAP110-Outdoor

Tahan Terhadap Cuaca yang Buruk dengan Sertifikasi IP65

Dinilai sebagai IP65 dalam tes Ingress Protection, built material pada EAP 100-Outdoor melindungi access point ini dari kondisi luar ruang yang esktrim.

Casing terbuat dari bahan ASA yang tahan lama
Antena tahan air

6KV Proteksi terhadap Petir dan 15KV Proteksi ESD

Tidak Ada Debu

Tahan Terhadap Air

Wi-Fi That Goes the Distance

With high transmission power and two high-gain omnidirectional antennas,
EAP110-Outdoor provides stable wireless coverage at a range of up to 200 meters in outdoor settings.

200m

High Transmission Power
High-Gain Antennas

Supports Passive PoE
for Easy Outdoor Set up

Do away with DC power adapters and power cords with passive Power over Ethernet (PoE), making outdoor deployment simple and fast.

Grounded PoE Adapter

Up to 60m

Flexible
Installation Options

Secure access points to walls or poles with the mounting kits provided.

Efficient Network Administration

in Centrally Managed and Standalone Modes

Centralized Management

Manage hundreds of access points at once with the multi-function Auranet Controller software, ideal for small and medium-sized business networks.

Standalone Mode

In smaller-scale networks, manage standalone access points with ease via our intuitive web interface.

Fitur

Wireless N Speed up to 300Mbps
Simple mounting design makes easy to install on any wall or pole
Passive PoE supported for convenient and affordable installation
Weatherproof enclosure, 15KV ESD and 6KV lightning protection
Free Controller Software for easy centralized management of hundreds of EAPs
Captive portal provides one convenient method of authentication for Wi-Fi guests
Rate limit on per SSID to restrict the bandwidth of each client
Load balance ensures large numbers of users have smooth network experiences in high density business networks
Access Control restricts or only allows the client to access the specified network segment
Reboot Schedule enables all the APs to reboot automatically at a specified time
WPA/WPA2-enterprise, 802.1X with RADIUS secure authentication and rogue access point detection ensure the security of WLAN
Multi-SSID divides multiple wireless network for different users
Multiple operating modes including managed AP and standalone AP satisfy different application conditions

Spesifikasi

HARDWARE FEATURES
Interface	Fast Ethernet (RJ-45) Port *1（Support Passive PoE）
Button	Reset
Power Supply	24VDC / 0.6A Passive PoE Supply
Power Consumption	6.3 W
Dimensions ( W x D x H )	8.2 × 3.7 × 1.7 in. (209 × 95 × 42.6 mm)
Antenna Type	2*5dBi External Omni waterproof
Mounting	Pole / Wall Mounting (Kits included)
Watch Dog	Yes

WIRELESS FEATURES
Wireless Standards	IEEE 802.11n/g/b
Frequency	2.4GHz
Signal Rate	11n: Up to 300Mbps(dynamic) 11g: Up to 54Mbps(dynamic) 11b: Up to 11Mbps(dynamic)
Transmit Power	CE： <20dBm FCC: <27dBm
Wireless Functions	Multiple SSIDs（Up to 8 SSIDs） Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control （Adjust Transmit Power on dBm） QoS(WMM) Load Balance Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/Client
Wireless Security	Captive Portal Authentication Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK

MANAGEMENT
Auranet Controller Software	Yes
Email Alerts	Yes
LED ON/OFF Control	Yes
Management MAC Access Control	Yes
SNMP	Yes
System Logging Local/Remote Syslog	Yes
Telnet	Yes
Web-based Management	HTTP/HTTPS
L3 Management	Yes
Multi-site Management	Yes
Management VLAN	Yes

OTHERS
Certification	CE, FCC, RoHS
Package Contents	300Mbps Wireless N Outdoor Access Point, EAP110-Outdoor Passive PoE Adapter Power Cord Mounting Kits Waterproof Rubber Insert Waterproof Antennas Installation Guide
System Requirements	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
Environment	Operating Temperature: -30℃~65℃ (-22℉~149℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
