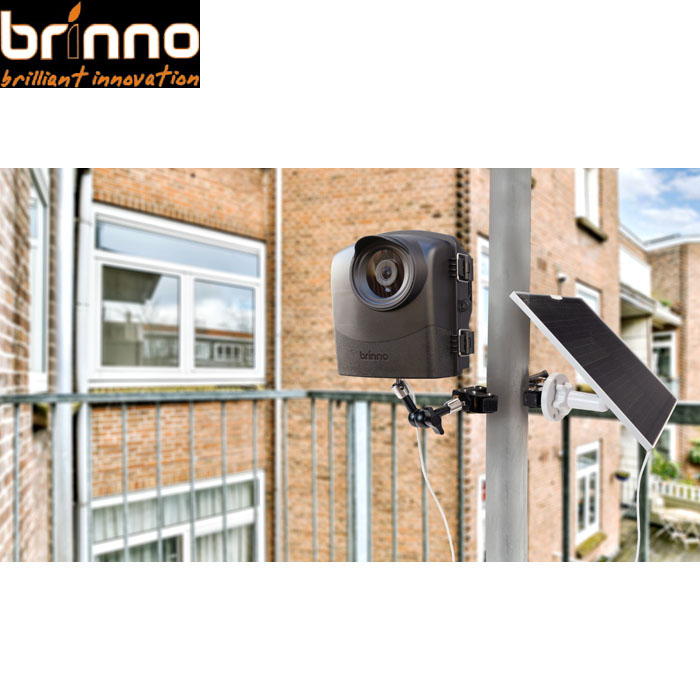

The Brinno Solar Power Kit is specifically designed for the Brinno BCC2000 & BCC2000 Plus construction camera bundles. It includes a 10W monocrystalline silicon solar panel with higher conversion efficiency and the Brinno Rechargeable Battery kit. It generates a continuous power supply for the time-lapse camera through direct sunlight.
The solar panel is designed to be weather resistant and comes with a 9.8-foot (3 meter) USB-C power cable. Additionally, it features an adjustable mount for easy installation in any location. The rechargeable battery kit includes a 12,600 mAh/ 45.4 Wh rechargeable battery pack and an
external power adapter. It is specifically designed to be compatible with the Brinno BCC2000 & BCC2000 Plus construction camera bundles and perfectly fits the original power housing (ATH2000). This kit supports continuous power supply for long-term time-lapse recording.

Features
1. 10W solar panel with a rechargeable battery kit.
2. A 12,600 mAh / 45.4 Wh battery pack.
3. Designed for continuous operation for time
lapse recording.
4. Compatible with Brinno BCC2000 & BCC2000
Plus.
5. Operating temperature range: -4 °F ∼ 140 °F (-
20°C to 60°C).
6. The solar panel is waterproof with an IP65 rating.

Compatible Models
Model Compatibility
BCC2000 / BCC2000 Plus V
TLC2020 single & bundles V (requires ATH2000 power housing)
TLC120 / TLC130 V (requires ATH2000 power housing)
TLC300 / BCC300-M / BCC300-C X

Package Contents
Solar Panel (ASP1000)
1. 10W Solar Panel
2. Holder & Wall Mount
3. Mounting Adapter
Rechargeable Battery Kit (APB1000)
1. Brinno Battery Pack
2. External Power Adapter

Specifications
Solar Panel
Model No. ASP1000
Solar Power Rating 10W
Operating Voltage 5V DC
Power Connection USB-C
Conversion Rate >20%
Works With Brinno Rechargeable Battery Kit (APB1000)
Waterproof IP65
Size (WxHxD)
Solar Panel: 8.4 x 10.3 x 0.8 in (214 x 262 x 20 mm)
USB-C Cable: 9.8 ft (3 m)
Weight 23.2 oz (660 g)

Rechargeable Battery Kit
Model No. APB1000
Power Source Brinno Battery Pack (MRB1000)
Energy Capacity 12,600 mAh / 45.4 Wh
Always-On Mode
Provides continuous power supply for low power time lapse camera
or IoT application.
Solar Panel Requirement
? Output wattage: 5W (minimum), 5V
? USB-C connector
Input Port USB-C (support 5V 2A quick charger) (on battery pack)
Output Port
1. Micro USB connector (for Brinno camera)
2. USB-C port
Output Voltage
& Output Current
? 5V 2A (max. for total two output)
? Micro USB: continuous output 5V 500mA (Max instantaneous
output 5V 1A)
? USB-C: continuous output 5V 1A
Compatible Models
? BCC2000 & BCC2000 Plus
? TLC2000/2020 with ATH2000 construction power housing
Ambient temperature -4 °F ∼ 140 °F (-20 °C ∼ 60 °C)*
Size (WxHxD) 3.68 x 3.22 x1.46 in (93.5 x 82 x 27.2 mm)
Weight 9.9 oz (280 g)
Package Contents
Brinno Battery Pack (MRB1000) x1; External Power Adapter; Hook
and Loop Tape

NOTE: Built-in short circuit protection when over charge, over discharge, over temperature (45? Input Cutoff, 60? Output Cutoff),
under temperature (0? Input Cutoff, -20? Output Cutoff)
