Chassis Rackmount dengan 2 unit power supply redundant, bukan optional.
Warna Chassis : Hitam

Overview

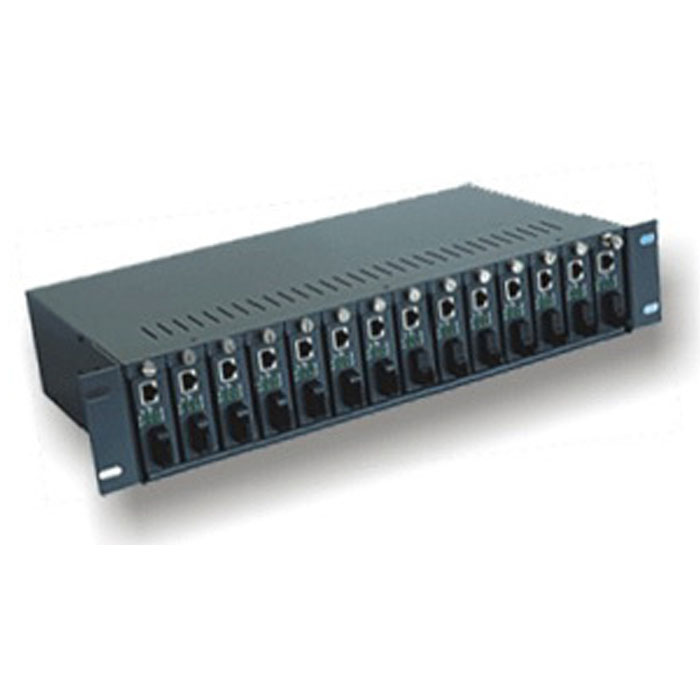

The 14 slots media converter chassis supports plug-andplay installation of stand-alone media converters convert modules ,can hold at most 14 pieces media converters.

This converter chassis can supply several media converters with power ,this will simple the links and structure , it can work stably and adapt broad width of voltage .It can store strong power and can be operated and managed easily. The maintenance of this chassis is also very easy. This option is the very one to meet the requirements of good stability , high capacity , good integration and good quality .

This option supports hot-swap convert modules .It can work with single power supply or dual power supply as users wish, when the power supply should be maintained or changed ,it is not necessary to pull-out the converters ,this makes the maintenance easy. With all these advantages ,this option can supply users with an effictive solution of networks.

SPECIFICATIONS
Number of slots :14
Media converters adapted :
14 slots chassis : 10/100M or 1000M or 10/100/1000M stand-alone media converters
Power in :AC 100 V~260 V ; OR DC 48V Power out :D C 5V , 12A
Diameter of DC plug :2.5/5.5 mm
Ripple50 Mv
Noise :50 Mv
Protection of power supply :circuit-breaker when overvoltage ;circuit-breaker when overflow ;circuit-breaker when short circuit
Operating Temperature :0~50
Storage Temperature:-20~85
Humidity: 5%~95%
Dimensions:L485 ,W231,H90 mm ;19 inches 2U

* Disarankan pemakaian untuk Media Converter merk yang sama.
