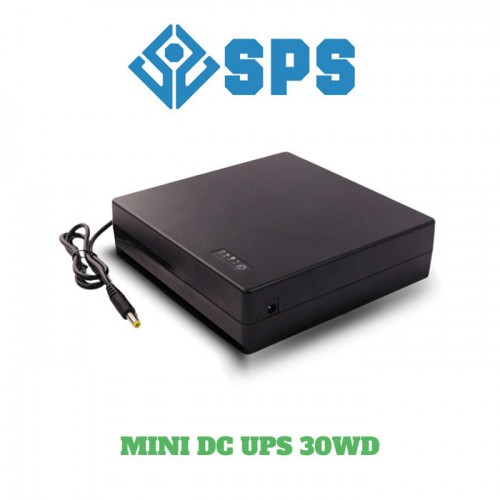

SPS DC UPS Mini Lithium Battery Output 12V 3A 30WD

DC Input/Output

Standard Features

Long Runtime
Designed to support various 12 Vdc (2.1 mm default DC tip) networking applications such as modems and routers.

Multiple DC Tips
Comes with 2 additional pair of DC tips (50 cm and
20 cm) to ensure compatibility with different brands of networking gear with 12V rating.

Lithium-ion Battery
Provides significantly longer service life than traditional VRLA battery.

Long Runtime
Up to 12 hours of runtime for an average router to ensure reliable connectivity.

Compact Design
Small footprint for easy installation in tight spaces.

LED Indicators
Easy to read indicators providing battery capacity information.

30WD
Power rating (Watt) 36 W

Input
Nominal input voltage 12VDC

Output
DC Output 12V / 3A
Port DC Output Type 2.1 mm X 5.5 mm

Battery and Runtime
Battery type Lithium-ion
Battery pack capacity 31.200mAh
Typical recharge time 3 Hours

User interface
Display LED indicators (power and battery)
Power button LED Bi-color red and green LED
LED indicator 4 green LEDs

Physical
Dimensions W x H x D (mm) 154 x 33 x 154
Net weight 0.8 kg

Environment
Operating temperature -10°C to 40°C
Operating humidity 10 to 90% non-condensing
Protection class IP20

Conformance
Certifications CE (IEC/EN 62368-1, EN 55032 class B, EN 55035)
Standard warranty 18 Month
